Category: Ball Valve
DIN PN16 SS Ball Valve
Model:Q41F-16P
Working pressure :PN16
Working temperature:10~150°C
Nominal size:DN 50-250
End connection:Double Flange
Design standard:DIN3202
Face to face:DIN EN558-1
Flange drilling:DIN EN1092-2
Inspection and test:DIN EN12266-1
Body material:WCB, SS304, S3316
Ball material:WCB, SS304, S3316
Seat material:PTFE
Actuator:Lever
|

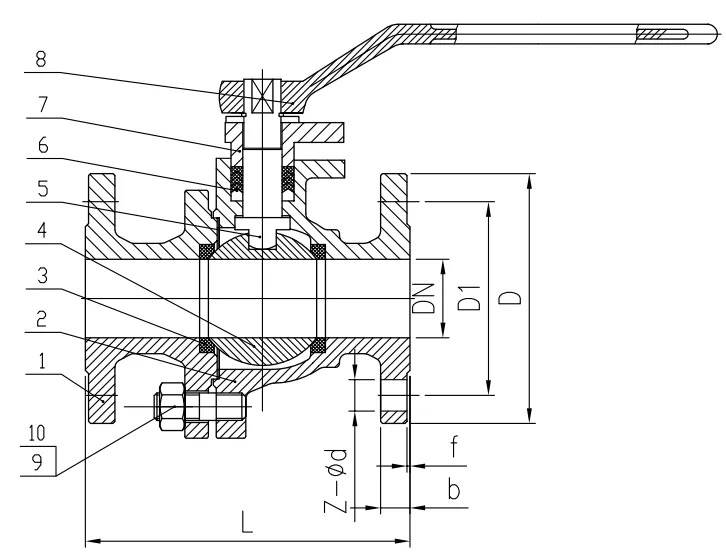

Technical Parameter PN16 |
|||||
|
DN |
L |
D |
D1 |
b |
Z-Φd |
|
15 |
130 |
95 |
65 |
14 |
4-Φ14 |
|
20 |
130 |
105 |
75 |
14 |
4-Φ14 |
|
25 |
140 |
115 |
85 |
14 |
4-Φ14 |
|
32 |
165 |
140 |
100 |
16 |
4-Φ18 |
|
40 |
165 |
150 |
110 |
16 |
4-Φ18 |
|
50 |
200 |
165 |
125 |
16 |
4-Φ18 |
|
65 |
220 |
185 |
145 |
18 |
4-Φ18 |
|
85 |
250 |
200 |
160 |
20 |
8-Φ18 |
|
100 |
280 |
220 |
180 |
20 |
8-Φ18 |
|
125 |
320 |
250 |
210 |
22 |
8-Φ18 |
|
150 |
360 |
285 |
240 |
24 |
8-Φ23 |
|
200 |
400 |
340 |
295 |
24 |
12-Φ23 |
|
250 |
530 |
405 |
355 |
26 |
12-Φ25 |
